Trucks

Tipper Trucks

Tipper Truck of 25 Tons (TT - 1) Features

  • Engine: CUMMINS Model B180 21.
  • Type: Water-cooled direct injection turbo-charged intercooled diesel engine
  • Max Output of Engine: 176 HP @ 2500 rpm
  • Max Torque: 654 Nm (66.6 kgm) at 1500 r.p.m
  • Capacity: 5883 cc
  • EURO II Emission
  • Gearbox:TATA Model G750-6 speed
  • No. of Gears: 6 Forward 1 Reverse
  • Suspension: Semi elliptical leaf spring type front and rear at anti roll bar at front axle only Shock Absorber Hydraulic double acting telescopic type at front only.
  • Frame: Ladder type frame with Riveted / Bolted cross members, side members are of channel section, depth: 285 mm (max) Flange width: 65 mm Frame Width: 888 mm
  • Brakes: Service Brake Dual circuit full air S-cam brake
  • Clutch: Spring type parking brake acting on Actuated rear wheels

Tipper Truck of 33 Tons (TT - 2) Features

  • Engine: DE12TIS Euro 2 six cylinder in-line direct injection intercooled turbo diesel
  • Capacity: 11051 cc
  • Power: 250 Kw at 2100 r/min
  • Torque: 1421 Nm at 1260 r/min
  • GVM: 33500 Kg

Description:

  • Extra heavy duty tipper truck with 10 m3 dumper
  • Payload up to 22 330 kg
  • Marrel type fast tipping mechanism
  • Vehicle sold as single unit
  • Ladder type double channel chassis frame
  • Six speed non splitter synchromesh gearbox for easy driving
  • Full air brakes
  • Air conditioned cabin
  • Power steering
  • Non computerised engine

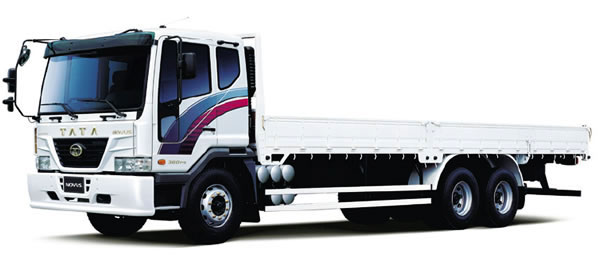

Cargo Truck

Cargo Truck of 16 Tons (CT - 1) Features

  • Engine: DE12TIS Euro 2 six cylinder in-line direct injection intercooled turbo diesel
  • Capacity: 11051 cc
  • Power: 250 Kw at 2100 r/min
  • Torque: 1421 Nm at 1260 r/min
  • GVM: 30500 Kg

Description:

  • Extra heavy duty cargo truck
  • Payload up to 23 930 kg
  • Ladder type double channel chassis frame
  • 10 speed synchromesh gearbox for easy driving
  • Full air brakes
  • Deluxe air conditioned cabin
  • Electric cab tilting system
  • Power steering
  • Non computerised engine

Different Truck Models
